Creating your first Pig script
As is the case with scripts in other programming languages such as SQL, Unix Shell, etc., Pig scripts are used to execute a set of Apache Pig commands collectively. This helps in reducing the time and effort invested in writing and executing each command manually while doing the Pig programming. This blog (Pig Programming: Create Your First Apache Pig script) is a step by step guide to help you create your first Apache Pig script.

Pig Programming: Create Your First Apache Pig Script

An Apache Pig script works in two modes:

Local Mode: In ‘local mode’, you can execute the pig script in local file system. In this case you don’t need to store the data in Hadoop HDFS file system, instead you can work with the data stored in local file system itself.
HDFS Mode: In ‘HDFS mode’, the data needs to be stored in HDFS file system and you can process the data with the help of pig script.

Pig Script in HDFS Mode:

Step1: Writing a script

Open an editor (e.g. gedit) in your Cloudera Demo VM environment:

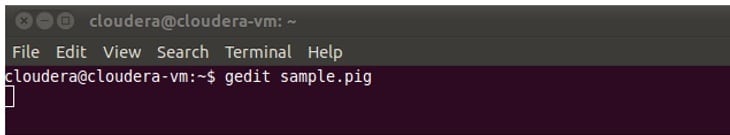

Command:  gedit sample.pig

Command to create a sample file in Pig

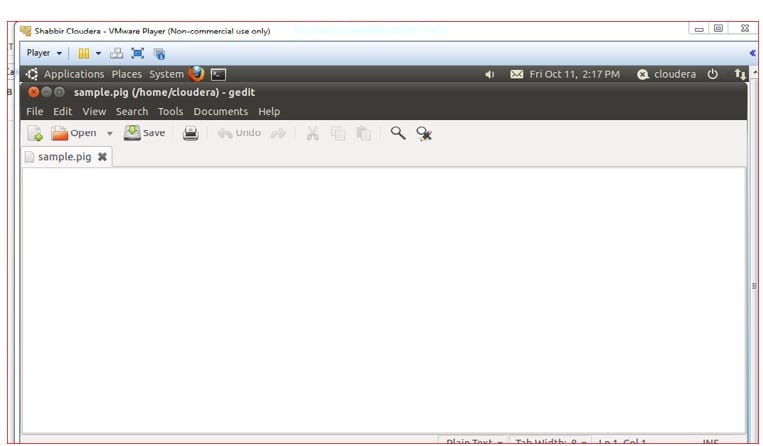

This command will create a ‘sample.pig’ file inside the home directory of cloudera user.
Home directory of cloudera user
Let’s write few PIG commands in the sample script.
Let us say our task is to read data from a data file and to display the required contents on the as output.
The sample data file contains following data:
Shabbir           Khan             9314573259     Bangalore        Engineer
Manish            Sharma        8882148796     Gurgaon           Lecturer
Mahesh           Kumar          8521548932     Noida                Business
Sampath         Reddy           8547987412     Hyderabad         Engineer
Mohan            Reddy           9256458798     Hyderabad         Professor

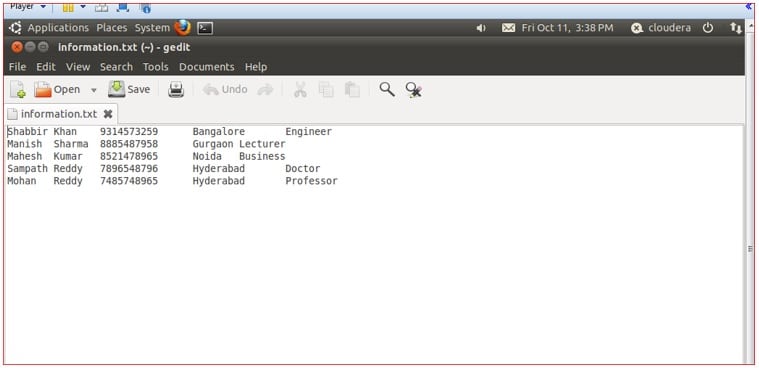

Save the text file with the name ‘information.txt’
Sample Pig data file
The sample data file contains five columns FirstName, LastName, MobileNo, City, and Profession separated by tab key. Our task is to read the content of this file in to HDFS and display First Name, Mobile Number and Profession of these contacts.
To process this data using Pig, this file should be present in Apache Hadoop HDFS.
Use  the following command:

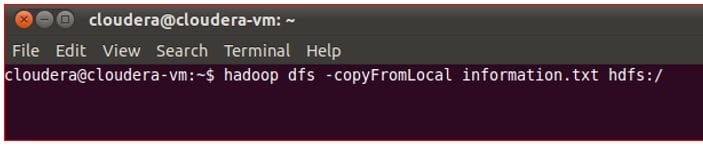

Command: hadoop dfs –copyFromLocal information.txt hdfs:/
Command to read the content of Pig file into HDFS

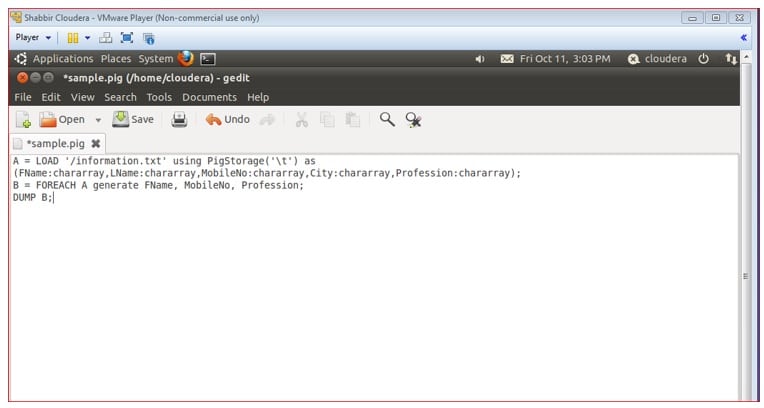

Edit the Pig script (sample.pig) to include following commands:
A = LOAD ‘/information.txt’ using PigStorage (‘\t’) as (FName: chararray, LName: chararray, MobileNo: chararray, City: chararray, Profession: chararray);
B = FOREACH A generate FName, MobileNo, Profession;
DUMP B;
Command  to load the data
Save and close the file.
The first command loads the file ‘information.txt’ into variable A with indirect schema (FName, LName, MobileNo, City, Profession).
The second command loads the required data from variable A to variable B.
The third line displays the content of variable B on the terminal/console.
Step 2: Execute the Pig Script
To execute the pig script in HDFS mode, run the following command:

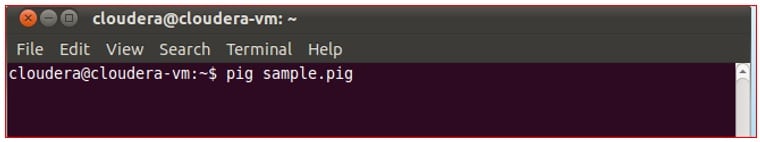

Command: pig sample.pig
Command to execute the pig script in HDFS mode

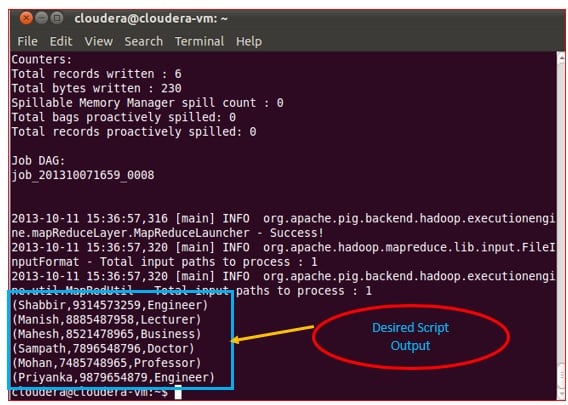

Review the result.
Pig script result review
Congratulations on executing your first Pig script successfully!

Hive Commands

What is Hive?

Apache Hive is a Data warehouse system which is built to work on Hadoop. It is used to querying and managing large datasets residing in distributed storage. Before becoming a open source project of Apache Hadoop, Hive was originated in Facebook. It provides a mechanism to project structure onto the data in Hadoop and to query that data using a SQL-like language called HiveQL (HQL).
Hive is used because the tables in Hive are similar to tables in a relational database. If you are familiar with SQL, it’s a cakewalk. Many users can simultaneously query the data using Hive-QL.

What is HQL?

Hive defines a simple SQL-like query language to querying and managing large datasets called Hive-QL ( HQL ). It’s easy to use if you’re familiar with SQL Language. Hive allows programmers who are familiar with the language to write the custom MapReduce framework to perform more sophisticated analysis.

Uses of Hive:

1. The Apache Hive distributed storage.
2. Hive provides tools to enable easy data extract/transform/load (ETL)
3. It provides the structure on a variety of data formats.
4. By using Hive, we can access files stored in Hadoop Distributed File System (HDFS is used to querying and managing large datasets residing in) or in other data storage systems such as Apache HBase.

Limitations of Hive:

• Hive is not designed for Online transaction processing (OLTP ), it is only used for the Online Analytical Processing.
• Hive supports overwriting or apprehending data, but not updates and deletes.
• In Hive, sub queries are not supported.

Why Hive is used inspite of Pig?

The following are the reasons why Hive is used in spite of Pig’s availability:
  • Hive-QL is a declarative language line SQL, PigLatin is a data flow language.
  • Pig: a data-flow language and environment for exploring very large datasets.
  • Hive: a distributed data warehouse.

Components of Hive:

Metastore :
Hive stores the schema of the Hive tables in a Hive Metastore. Metastore is used to hold all the information about the tables and partitions that are in the warehouse. By default, the metastore is run in the same process as the Hive service and the default Metastore is DerBy Database.
SerDe :
Serializer, Deserializer gives instructions to hive on how to process a record.

Hive Commands :

Data Definition Language (DDL )
DDL statements are used to build and modify the tables and other objects in the database.
Example :
CREATE, DROP, TRUNCATE, ALTER, SHOW, DESCRIBE Statements.
Go to Hive shell by giving the command sudo hive and enter the command ’create database <data base name>’ to create the new database in the Hive.
Create Hive database using Hive Commands
To list out the databases in Hive warehouse, enter the command ‘show databases’.
List Hive database using Hive Commands
The database creates in a default location of the Hive warehouse. In Cloudera, Hive database store in a /user/hive/warehouse.
List Hive database using Hive Commands
The command to use the database is USE <data base name>
Hive command to use the database
Copy the input data to HDFS from local by using the copy From Local command.
 Input data in Hive
Hive table
When we create a table in hive, it creates in the default location of the hive warehouse. – “/user/hive/warehouse”, after creation of the table we can move the data from HDFS to hive table.
The following command creates a table with in location of “/user/hive/warehouse/retail.db”
Note : retail.db is the database created in the Hive warehouse.
Creating Database in Hive Warehouse.
Describe provides information about the schema of the table.
Describe - Hive Command
Data Manipulation Language (DML )
DML statements are used to retrieve, store, modify, delete, insert and update data in the database.
Example :
LOAD, INSERT Statements.
Syntax :
LOAD data <LOCAL> inpath <file path> into table [tablename]
The Load operation is used to move the data into corresponding Hive table. If the keyword local is specified, then in the load command will give the local file system path. If the keyword local is not specified we have to use the HDFS path of the file.
DML statement - Load Command
DML statement - Load Command
Here are some examples for the LOAD data LOCAL command
DML statement - Load Command
DML statement - Load Command
After loading the data into the Hive table we can apply the Data Manipulation Statements or aggregate functions retrieve the data.
Example to count number of records:
Count aggregate function is used count the total number of the records in a table.
Example to count number of records:
‘create external’ Table :
The create external keyword is used to create a table and provides a location where the table will create, so that Hive does not use a default location for this table. An EXTERNAL table points to any HDFS location for its storage, rather than default storage.
Create External Command in Hive
Create External Command in Hive
Insert Command:
The insert command is used to load the data Hive table. Inserts can be done to a table or a partition.
• INSERT OVERWRITE is used to overwrite the existing data in the table or partition.
• INSERT INTO is used to append the data into existing data in a table. (Note: INSERT INTO syntax is work from the version 0.8)
Insert Command
Insert Command

Example for ‘Partitioned By’ and ‘Clustered By’ Command :

‘Partitioned by‘ is used to divided the table into the Partition and can be divided in to buckets by using the ‘Clustered By‘ command.
Example for 'Partitioned By' and 'Clustered By' Command
Example for 'Partitioned By' and 'Clustered By' Command
When we insert the data Hive throwing errors, the dynamic partition mode is strict and dynamic partition not enabled. So we need to set the following parameters in Hive shell.
set hive.exec.dynamic.partition=true;
To enable dynamic partitions, by default, it’s false
set hive.exec.dynamic.partition.mode=nonstrict;
Dynamic Partitions
Dynamic Partitions
Dynamic Partitions
Partition is done by the category and can be divided in to buckets by using the ‘Clustered By’ command.
Partition
The ‘Drop Table’ statement deletes the data and metadata for a table. In the case of external tables, only the metadata is deleted.
Drop Table statement
Drop Table statement
The ‘Drop Table’ statement deletes the data and metadata for a table. In the case of external tables, only the metadata is deleted.
Load data local inpath ‘aru.txt’ into table tablename and then we check employee1 table by using Select * from table name command
To count the number of records in table by using Select count(*) from txnrecords;
To count the number of records in table by using Select count(*) from txnrecords;
To count the number of records in table by using Select count(*) from txnrecords;

Aggregation :

Select count (DISTINCT category) from tablename;
This command will count the different category of ‘cate’ table. Here there are 3 different categories.
Suppose there is another table cate where f1 is field name of category.
 Count the different category of 'cate' table.
 Count the different category of 'cate' table.

Grouping :

Group command is used to group the result-set by one or more columns.
Select category, sum( amount) from txt records group by category
It calculates the amount of same category.
Group command
The result one table is stored in to another table.
Create table newtablename as select * from oldtablename;
Group command

Join Command :

Here one more table is created in the name ‘mailid’
Join Command
Join Command

Join Operation:

A Join operation is performed to combining fields from two tables by using values common to each.
Join Operation

Left Outer Join:

The result of a left outer join (or simply left join) for tables A and B always contains all records of the “left” table (A), even if the join-condition does not find any matching record in the “right” table (B).
Left Outer Join
Left Outer Join

Right Outer Join:

A right outer join (or right join) closely resembles a left outer join, except with the treatment of the tables reversed. Every row from the “right” table (B) will appear in the joined table at least once.
Right Outer Join
Right Outer Join

Full Join:

The joined table will contain all records from both tables, and fill in NULLs for missing matches on either side.
Full Join
Full Join
Once done with hive we can use quit command to exit from the hive shell.
Exiting from Hive

Hive Data Model



Hive is a data warehouse system for Hadoop that facilitates easy data summarization, ad-hoc queries, and the analysis of large datasets stored in Hadoop compatible file systems. Hive structures data into well-understood database concepts such as tables, rows, columns and partitions. It supports primitive types like Integers, Floats, Doubles, and Strings. Hive also supports Associative Arrays, Lists, Structs, and Serialize and Deserialized API is used to move data in and out of tables.
Let’s look at Hive Data Models in detail;

Hive Data Models:

The Hive data models contain the following components:
  • Databases
  • Tables
  • Partitions
  • Buckets or clusters
Hive Data Models

Partitions:

Partition means dividing a table into a coarse grained parts based on the value of a partition column such as ‘data’. This makes it faster to do queries on slices of data
Hive Data Models
So, what is the function of Partition? The Partition keys determine how data is stored. Here, each unique value of the Partition key defines a Partition of the table. The Partitions are named after dates for convenience. It is similar to ‘Block Splitting’ in HDFS.

Buckets:

Buckets give extra structure to the data that may be used for efficient queries. A join of two tables that are bucketed on the same columns, including the join column can be implemented as a Map-Side Join. Bucketing by used ID means we can quickly evaluate a user-based query by running it on a randomized sample of the total set of users.
Hive Data Models
